Draft sight- Isometric view

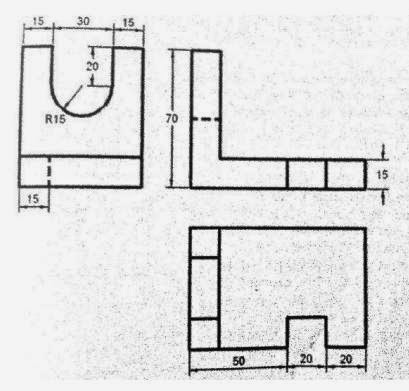

To draw isometric views for the orthographic diagram

LIST OF COMMANDS USED
Line, Hatch, Snap, Ortho, Isometric grid
PROCEDURE
1. Set Ortho on.
2. Enter Snap command, enter G for grid style and the I for isometric then press enter.
3. Enter Isometricgrid and select T or top
4. Enter Line command
5. Select start point
6. Specify next point: 40
7. Specify next point : 15
8. Specify next point : 20
9. Specify next point : 15
10. Specify next point : 20
11. Specify next point: 60
12. Specify next point:80
13. Specify next point: 60 and close
14. Enter Isometricgrid command and enter R for right
15. Select Line command
16. Select start point left corner end
17. Specify next point: 55
18. Specify next point: 15
19. Specify next point: 20

20. Select start point right corner end
21. Specify next point: 55
22. Specify next point: 15
23. Specify next point: 20
24. Select ellipse arc command
25. In options select isocircle
26. Specify centre point
27. Specify radius:15
28. Specify start angle and end angle

29. Use copy and trim- crossline command for creating the remaining horizontal and vertical entities.
